Weld Mesh
Galvanised welded wire mesh in 50MM x 50MM to 75MM x 100MM openings for fencing, partitions, guards, cages and reinforcement.
Welded wire mesh is produced by welding wires at every intersection, giving a flat, rigid sheet or roll that holds shape when cut. Navkar Fence supplies weld mesh in openings from 50MM x 50MM to 75MM x 100MM for boundary fencing, machine guards, partitions, poultry and animal enclosures, tree guards and general fabrication.
- Openings from 50MM x 50MM to 75MM x 100MM
- Welded at every intersection for rigidity
- Holds shape when cut to size
- Supplied as rolls or flat panels
- Suitable for fencing, guards, cages and partitions
- Galvanised finish for outdoor use
Where it is used
Weld Mesh applications

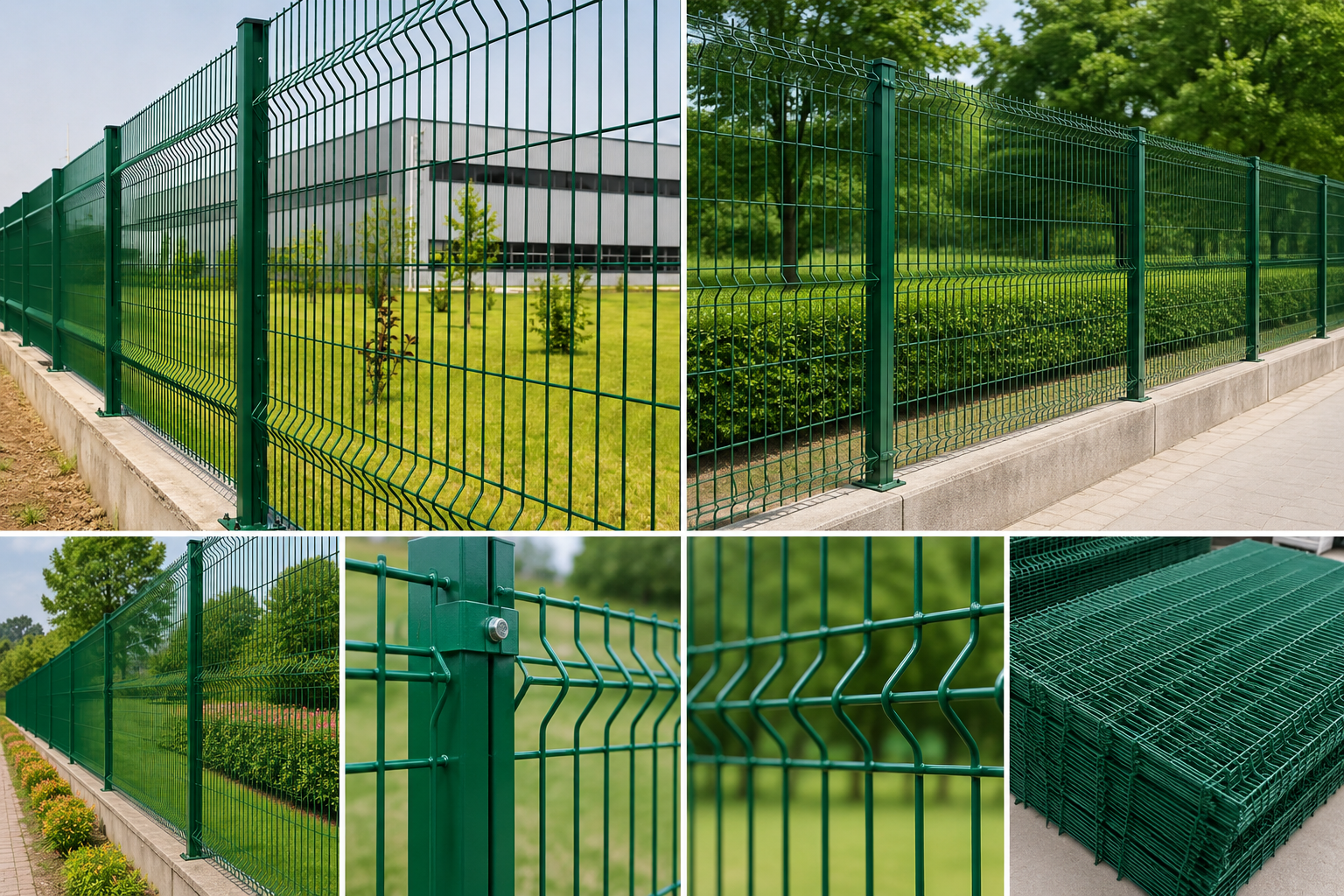

Welded mesh panels and rolls are used for factory and warehouse partitions, machine guards, cage and store rooms, false ceilings and window grills, animal cages and poultry housing, and general boundary fencing.
In construction they are used for wall plastering reinforcement, concrete slab and pavement reinforcement, gabion baskets and drain covers; in infrastructure, for substation compounds, railway boundaries, solar plants and airport perimeters.
Benefits & features of Weld Mesh
Every intersection is resistance welded, so the mesh holds its square geometry, does not unravel when cut, and carries load evenly across the panel.
Uniform openings make it easy to specify and easy to inspect, panels are quick to fix by welding or clamping, and galvanised or PVC-coated finishes cover both indoor and exposed outdoor duty. Panels can be cut and fabricated to any opening size on site.
Technical range
Weld Mesh specifications
- Mesh / opening sizes: 50MM × 100MM, 50MM × 50MM, 50MM × 75MM, 75MM × 100MM, 75MM × 75MM
- Wire diameter: 2.0MM, 2.25MM, 2.5MM, 3.0MM
- Finish: galvanised; PVC coating available on request
- Height and running length: manufactured to your requirement
- Custom sizes, gauges and finishes made to order
- Supplied with matching posts, fittings and accessories
Send the mesh opening, wire diameter and panel size you need and we will confirm availability and price.
Products
Navkar's weld mesh range lists 20 products. 5 are published with confirmed specifications — the remaining options are being verified before publication. Send your requirement and our team will confirm availability.
Filter by specification
Mesh
Wire diameter
Showing 5 of 5 published products
Weld Mesh 50MM × 50MM
Welded mesh with 50MM × 50MM aperture in 2.0MM to 3.0MM wire diameter.
Weld Mesh 50MM × 75MM
Welded mesh with 50MM × 75MM aperture in 2.0MM to 3.0MM wire diameter.

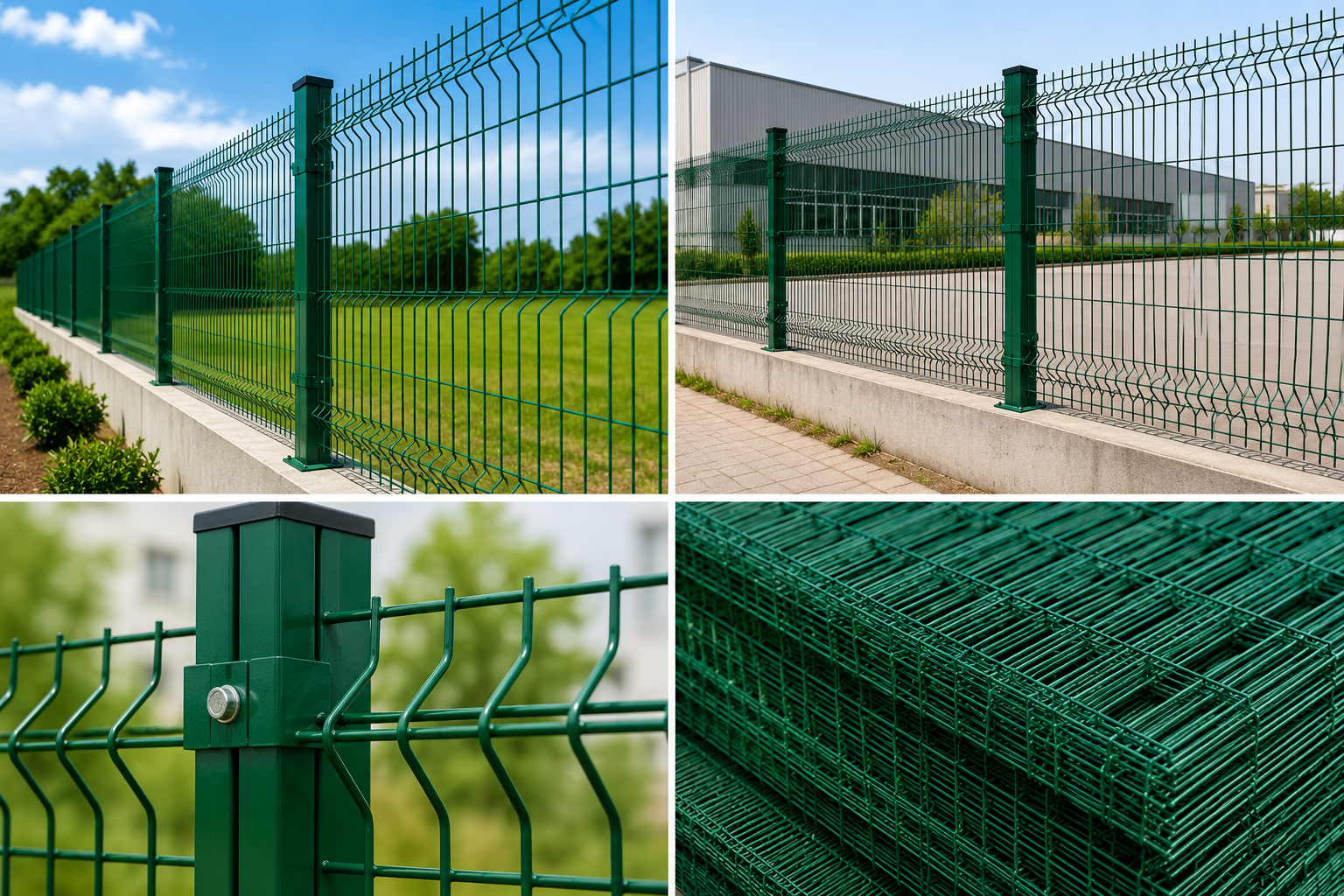

Weld Mesh 50MM × 100MM
Welded mesh with 50MM × 100MM aperture in 2.0MM to 3.0MM wire diameter.
Weld Mesh 75MM × 75MM
Welded mesh with 75MM × 75MM aperture in 2.0MM to 3.0MM wire diameter.
Weld Mesh 75MM × 100MM
Welded mesh with 75MM × 100MM aperture in 2.0MM to 3.0MM wire diameter.
Full size range
Weld Mesh — size & specification range
Every published size across this category. Download as Excel or CSV.
| Weld Mesh 50MM × 50MM — 2.0MM wire | 50MM × 50MM | 2.0MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 50MM — 2.25MM wire | 50MM × 50MM | 2.25MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 50MM — 2.5MM wire | 50MM × 50MM | 2.5MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 50MM — 3.0MM wire | 50MM × 50MM | 3.0MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 75MM — 2.0MM wire | 50MM × 75MM | 2.0MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 75MM — 2.25MM wire | 50MM × 75MM | 2.25MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 75MM — 2.5MM wire | 50MM × 75MM | 2.5MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 75MM — 3.0MM wire | 50MM × 75MM | 3.0MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 100MM — 2.0MM wire | 50MM × 100MM | 2.0MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 100MM — 2.25MM wire | 50MM × 100MM | 2.25MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 100MM — 2.5MM wire | 50MM × 100MM | 2.5MM | 3FT – 6FT | As Required |
| Weld Mesh 50MM × 100MM — 3.0MM wire | 50MM × 100MM | 3.0MM | 3FT – 6FT | As Required |
Technical information
Standard openings: 50MM x 50MM, 50MM x 75MM, 50MM x 100MM, 75MM x 75MM and 75MM x 100MM. Wire diameter, sheet or roll size and finish are selected per application. Confirm wire gauge and panel size with our team before ordering.
Other mesh openings, wire diameters, panel sizes and coatings can be manufactured to order.
