Weld Mesh
Weld Mesh 50MM × 50MM
Welded mesh with 50MM × 50MM aperture in 2.0MM to 3.0MM wire diameter.
Code: WM-50-50
Where it is used
Weld Mesh 50MM × 50MM applications
Weld Mesh 50MM × 50MM is supplied from our weld mesh range and is used across the applications below. Specification is confirmed against your drawing before dispatch.

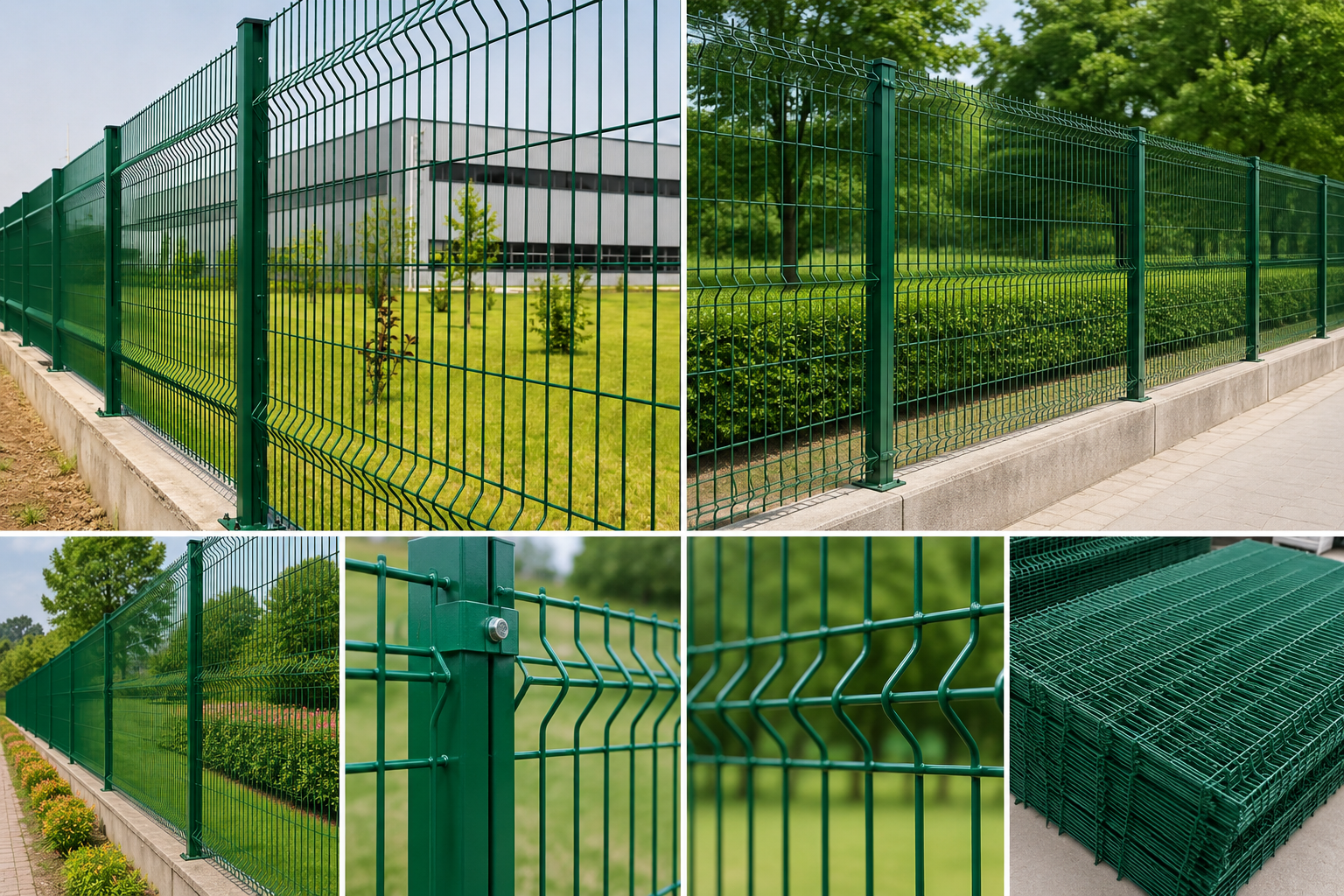

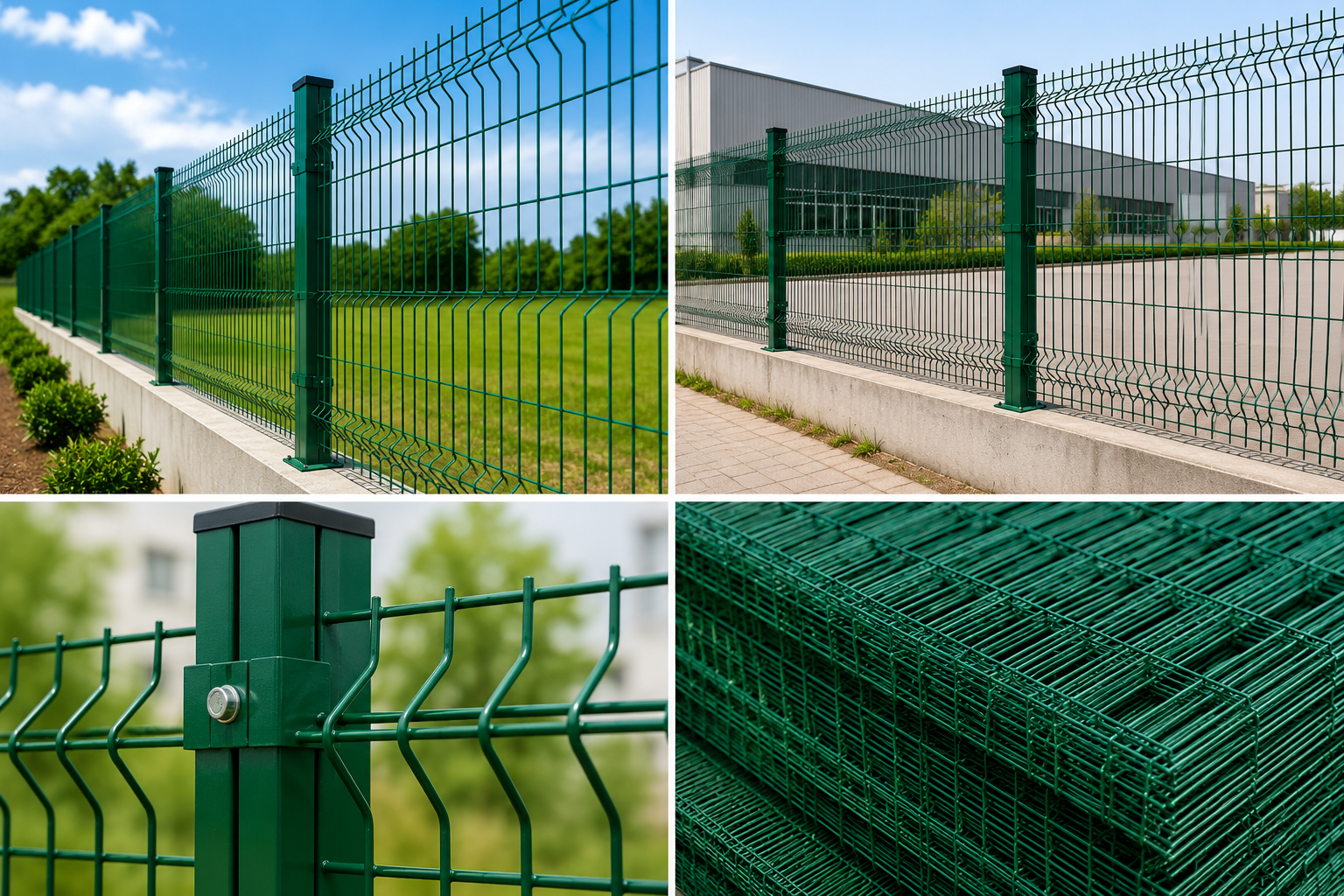

Welded mesh panels and rolls are used for factory and warehouse partitions, machine guards, cage and store rooms, false ceilings and window grills, animal cages and poultry housing, and general boundary fencing.
In construction they are used for wall plastering reinforcement, concrete slab and pavement reinforcement, gabion baskets and drain covers; in infrastructure, for substation compounds, railway boundaries, solar plants and airport perimeters.
Benefits & features of Weld Mesh 50MM × 50MM
Welded mesh with 50MM × 50MM aperture in 2.0MM to 3.0MM wire diameter.
Every intersection is resistance welded, so the mesh holds its square geometry, does not unravel when cut, and carries load evenly across the panel.
Uniform openings make it easy to specify and easy to inspect, panels are quick to fix by welding or clamping, and galvanised or PVC-coated finishes cover both indoor and exposed outdoor duty. Panels can be cut and fabricated to any opening size on site.
Technical range
Weld Mesh 50MM × 50MM specifications
- Product: Weld Mesh 50MM × 50MM
- Mesh / opening: 50MM × 50MM
- Wire diameter: 2.0MM, 2.25MM, 2.5MM, 3.0MM
- Finish: galvanised; PVC coating available on request
- Height: 3FT – 6FT
- Length / roll: As Required
- Full size and gauge table given in the specification sheet below
- Custom sizes and finishes manufactured to order
Need Weld Mesh 50MM × 50MM? Send us the size, quantity and delivery location and we will send a written quotation with current rates.
- Mesh
- 50MM × 50MM
- Height
- 3FT – 6FT
- Length
- As Required
- Wire Diameter
- 2.0MM / 2.25MM / 2.5MM / 3.0MM
Mesh configuration, wire diameters and height range as listed on the Navkar Fence weld mesh product sheet.
