Category
Chain Link Fencing

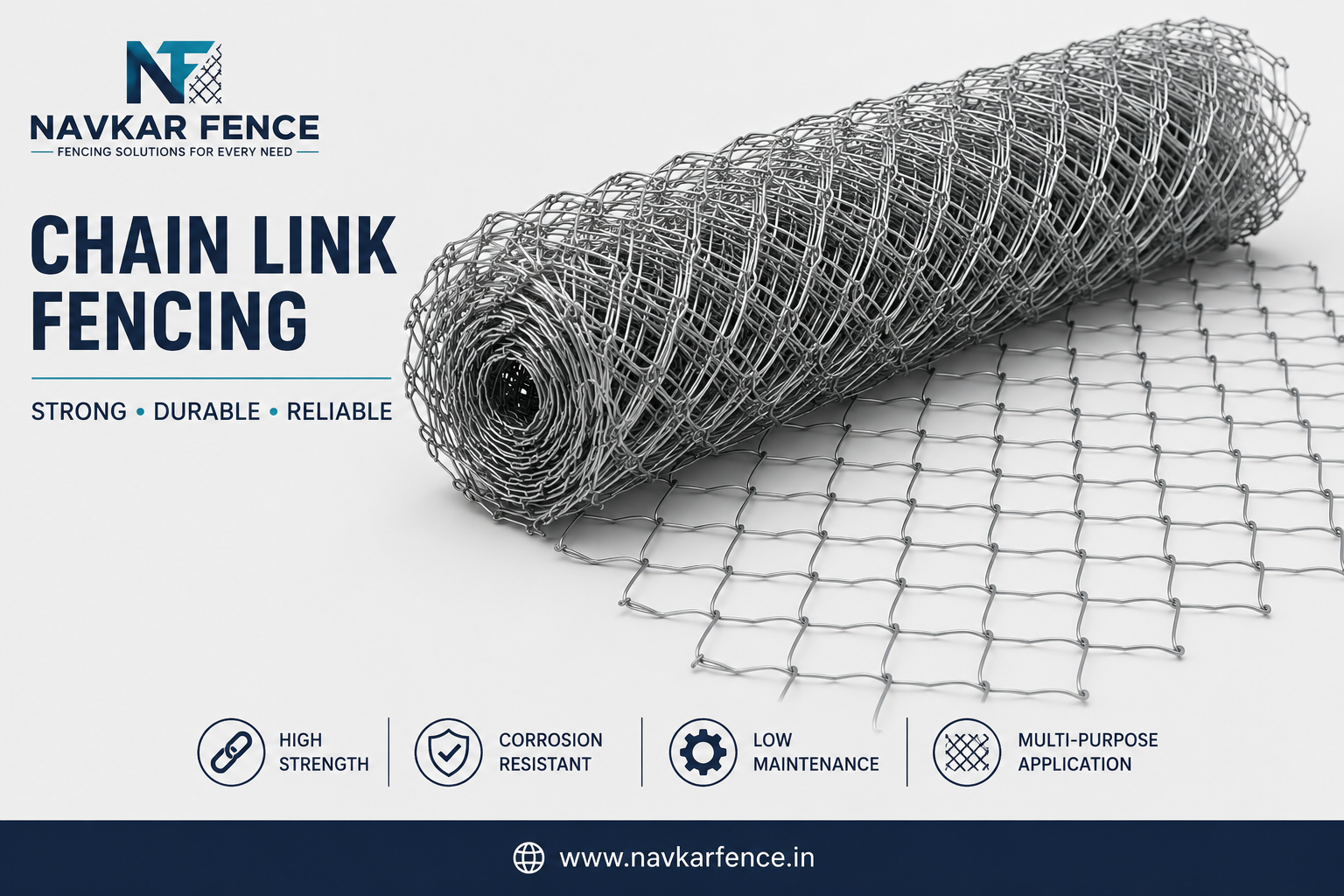

Galvanised and PVC coated chain link fencing mesh in 25MM to 125MM diamond sizes for factories, farms, plots, sports grounds and boundary walls.
Chain link fencing is the most widely used boundary fencing in India because it combines low cost, long life and easy installation. Navkar Fence supplies chain link mesh in diamond openings from 25MM x 25MM up to 125MM x 125MM, in galvanised iron and PVC coated finishes, across the common wire gauges used for residential plots, farms, factories and sports grounds. Rolls are woven to the height and length your site needs, and can be fixed to PRCC poles, steel angle posts or existing boundary walls. Smaller openings give higher security and stop small animals; larger openings cover long boundaries at a lower cost per running foot.
- Available in 25MM, 50MM, 75MM, 100MM and 125MM diamond mesh
- Galvanised iron or PVC coated finish for corrosion resistance
- Custom roll height, length and wire gauge on request
- Fits PRCC poles, steel angle posts and boundary walls
- Economical cost per running foot on long boundaries
- Fast supply for standard sizes
Where it is used
Chain Link Fencing applications
Chain link fencing is the most widely used woven wire fence in India. In lighter wire gauges and wider mesh openings it is used for boundary walls of homes, farms, schools, playgrounds, parks, swimming pools, godown partitions, poultry and cattle enclosures, and general plot demarcation, where the diamond mesh gives a clear line of sight while keeping the perimeter secured.
In heavier gauges and tighter mesh openings the same fabric becomes a serious security barrier. It is specified for factory and warehouse compounds, substations and solar parks, railway and highway boundaries, water treatment plants, mining sites, telecom towers, airports and defence establishments, usually with angle-post or PRCC-pole framing and barbed wire or razor coil on top.
Benefits & features of Chain Link Fencing
The reason chain link has stayed the default fencing choice is simple economics with real strength. The fabric is flexible, follows uneven ground without needing a level plinth, and can be installed by a small crew with basic tools, so site cost and installation time stay low.
Galvanised wire resists rust in open weather, and PVC-coated fabric adds a further sealed layer for coastal, humid and chemically loaded sites while giving a cleaner finished look. Rolls can be supplied compacted or un-compacted, in the mesh, gauge and height your drawing calls for, and damaged sections can be repaired in place instead of replacing the whole run.
Technical range
Chain Link Fencing specifications
- Mesh / opening sizes: 100MM × 100MM, 125MM × 125MM, 25MM × 25MM, 50MM × 50MM, 75MM × 75MM
- Wire diameter: 2.5MM, 3.0MM, 3.15MM, 4.0MM
- Coating options: Galvanised + PVC
- Height and running length: manufactured to your requirement
- Custom sizes, gauges and finishes made to order
- Supplied with matching posts, fittings and accessories
Send us your mesh size, wire diameter, height and running length and we will quote the exact chain link specification you need — standard or custom.
Products
Navkar's chain link fencing range lists 20 products. 10 are published with confirmed specifications — the remaining options are being verified before publication. Send your requirement and our team will confirm availability.
Filter by specification
Mesh
Wire diameter
Showing 10 of 10 published products
Chain Link Fencing 25MM × 25MM
Chain link fencing with 25MM × 25MM mesh, available in 2.5MM and 3.0MM wire diameter.
Chain Link Fencing 50MM × 50MM
Chain link fencing with 50MM × 50MM mesh, available in 2.5MM, 3.15MM and 4.0MM wire diameter.
Chain Link Fencing 75MM × 75MM
Chain link fencing with 75MM × 75MM mesh, available in 2.5MM, 3.15MM and 4.0MM wire diameter.

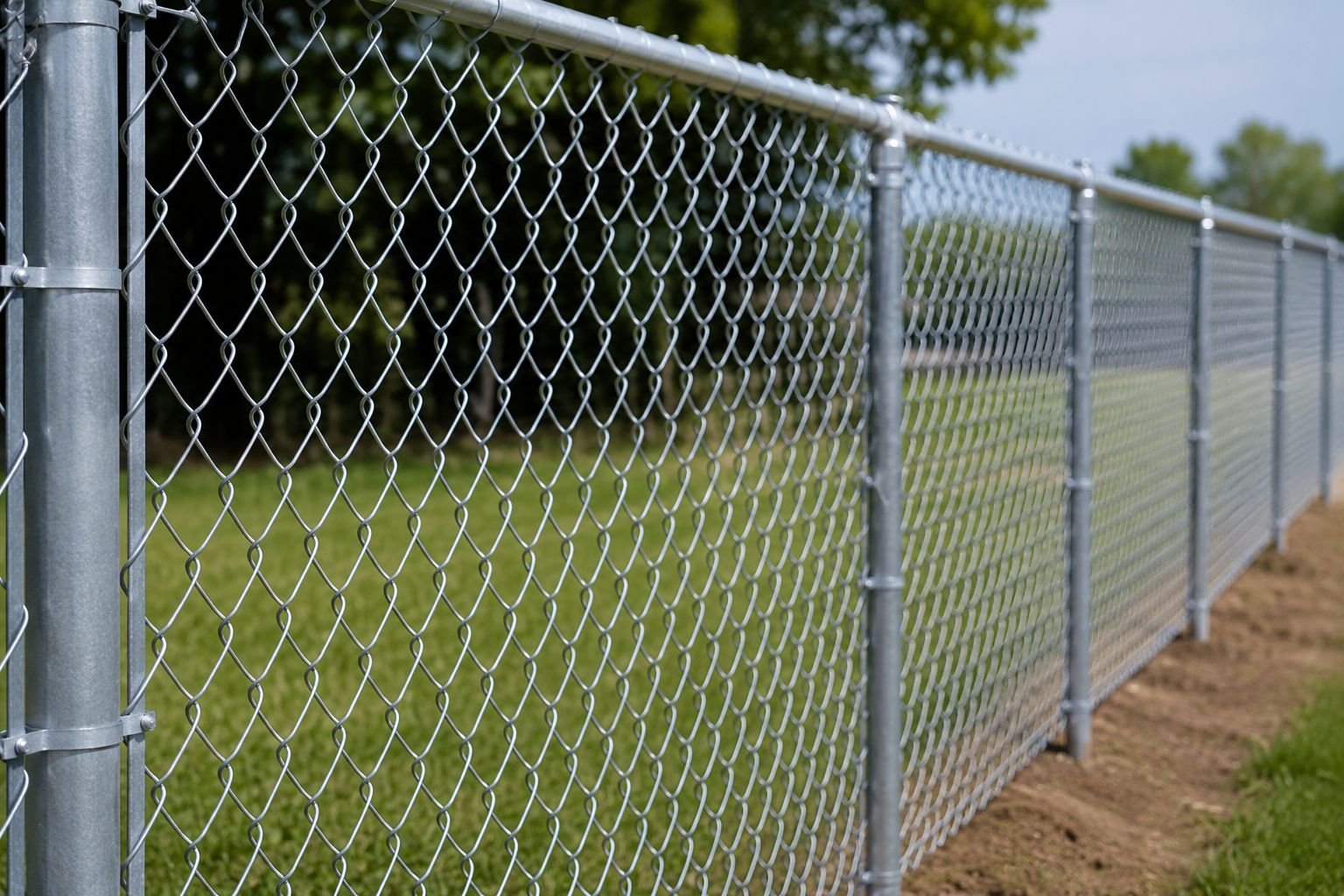

Chain Link Fencing 100MM × 100MM
Chain link fencing with 100MM × 100MM mesh, available in 2.5MM, 3.15MM and 4.0MM wire diameter.
Chain Link Fencing 125MM × 125MM
Chain link fencing with 125MM × 125MM mesh, available in 2.5MM, 3.15MM and 4.0MM wire diameter.

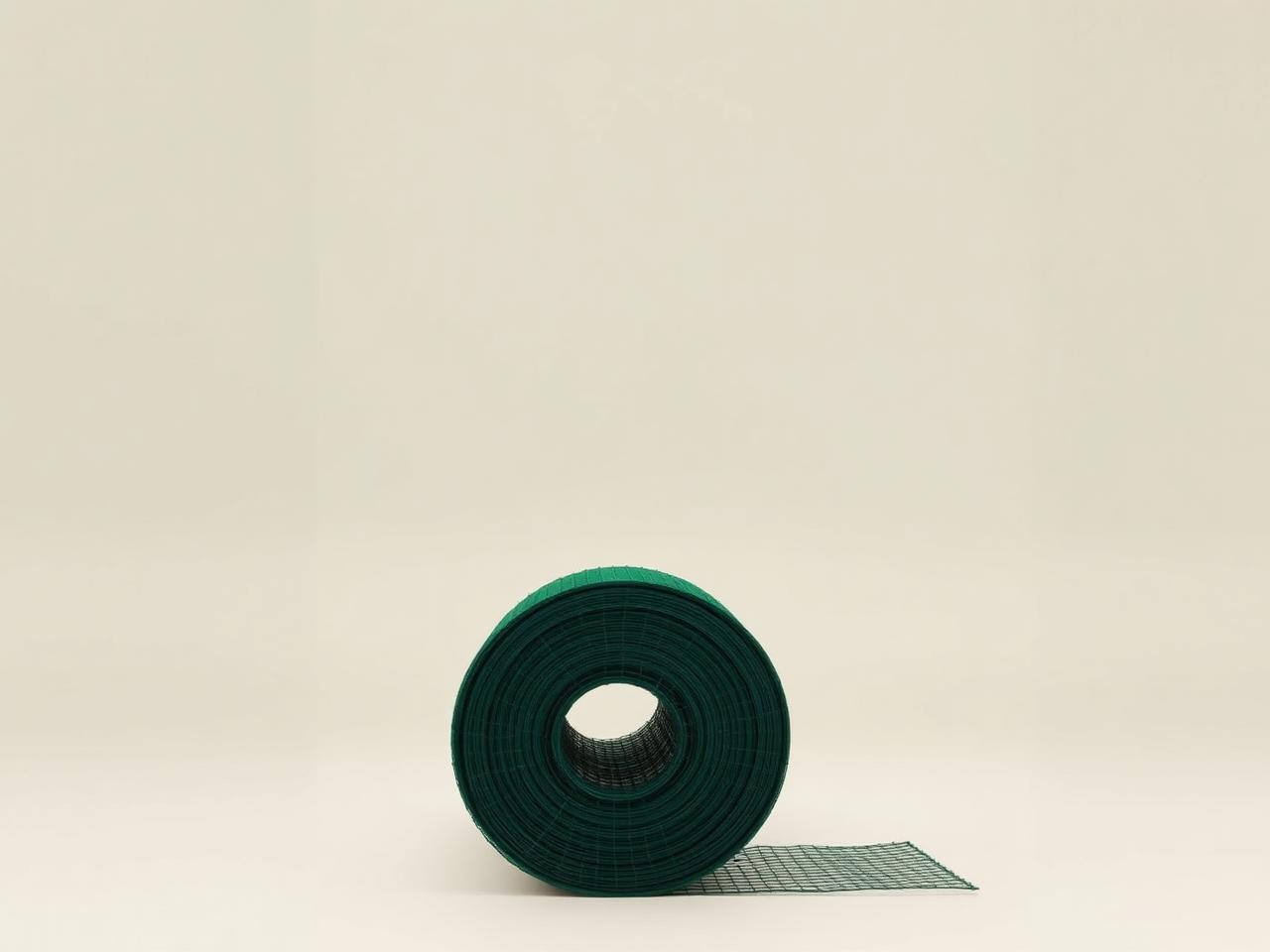

PVC Coated Chain Link 25MM × 25MM
PVC coated chain link fencing with 25MM × 25MM mesh over a galvanised core.
PVC Coated Chain Link 50MM × 50MM
PVC coated chain link fencing with 50MM × 50MM mesh over a galvanised core.
PVC Coated Chain Link 75MM × 75MM
PVC coated chain link fencing with 75MM × 75MM mesh over a galvanised core.
PVC Coated Chain Link 100MM × 100MM
PVC coated chain link fencing with 100MM × 100MM mesh over a galvanised core.
PVC Coated Chain Link 125MM × 125MM
PVC coated chain link fencing with 125MM × 125MM mesh over a galvanised core.
Full size range
Chain Link Fencing — size & specification range
Every published size across this category. Download as Excel or CSV.
| Chain Link Fencing 25MM × 25MM — 2.5MM wire | 25MM × 25MM | 2.5MM | As Required | As Required | — |
| Chain Link Fencing 25MM × 25MM — 3.0MM wire | 25MM × 25MM | 3.0MM | As Required | As Required | — |
| Chain Link Fencing 50MM × 50MM — 2.5MM wire | 50MM × 50MM | 2.5MM | As Required | As Required | — |
| Chain Link Fencing 50MM × 50MM — 3.15MM wire | 50MM × 50MM | 3.15MM | As Required | As Required | — |
| Chain Link Fencing 50MM × 50MM — 4.0MM wire | 50MM × 50MM | 4.0MM | As Required | As Required | — |
| Chain Link Fencing 75MM × 75MM — 2.5MM wire | 75MM × 75MM | 2.5MM | As Required | As Required | — |
| Chain Link Fencing 75MM × 75MM — 3.15MM wire | 75MM × 75MM | 3.15MM | As Required | As Required | — |
| Chain Link Fencing 75MM × 75MM — 4.0MM wire | 75MM × 75MM | 4.0MM | As Required | As Required | — |
| Chain Link Fencing 100MM × 100MM — 2.5MM wire | 100MM × 100MM | 2.5MM | As Required | As Required | — |
| Chain Link Fencing 100MM × 100MM — 3.15MM wire | 100MM × 100MM | 3.15MM | As Required | As Required | — |
| Chain Link Fencing 100MM × 100MM — 4.0MM wire | 100MM × 100MM | 4.0MM | As Required | As Required | — |
| Chain Link Fencing 125MM × 125MM — 2.5MM wire | 125MM × 125MM | 2.5MM | As Required | As Required | — |
Technical information
Mesh openings: 25MM x 25MM to 125MM x 125MM. Finish options: galvanised iron (GI) or PVC coated over GI core. Wire diameter and roll height are selected to suit the boundary height and security level required. Confirm exact wire gauge, coating thickness and roll length with our team before ordering.
Non-standard mesh openings, wire gauges, roll heights and colours can be manufactured to order. Share your boundary length and required height for a size-wise recommendation.
