Category
3D Fence
Powder coated 3D welded mesh fence panels from 1000MM to 2400MM height for campuses, plants, parks, societies and infrastructure boundaries.
3D fence panels are rigid welded mesh panels with horizontal V-bends that add stiffness and a clean architectural look. They are the preferred choice where the boundary is visible to the public: corporate campuses, factories, schools, parks, residential societies, solar plants and highway installations. Navkar Fence supplies panels from 1000MM to 2400MM height, with matching posts and fixing clamps, in powder coated finishes over a galvanised base.
- Panel heights from 1000MM to 2400MM
- V-bend profile for high panel rigidity
- Powder coated finish over galvanised base
- Clean architectural appearance for visible boundaries
- Matching posts, clamps and fasteners available
- Fast panel-by-panel installation
Where it is used
3D Fence applications

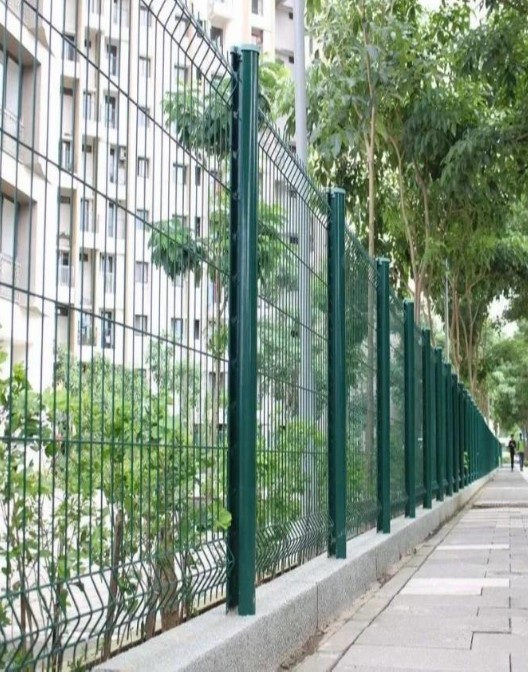

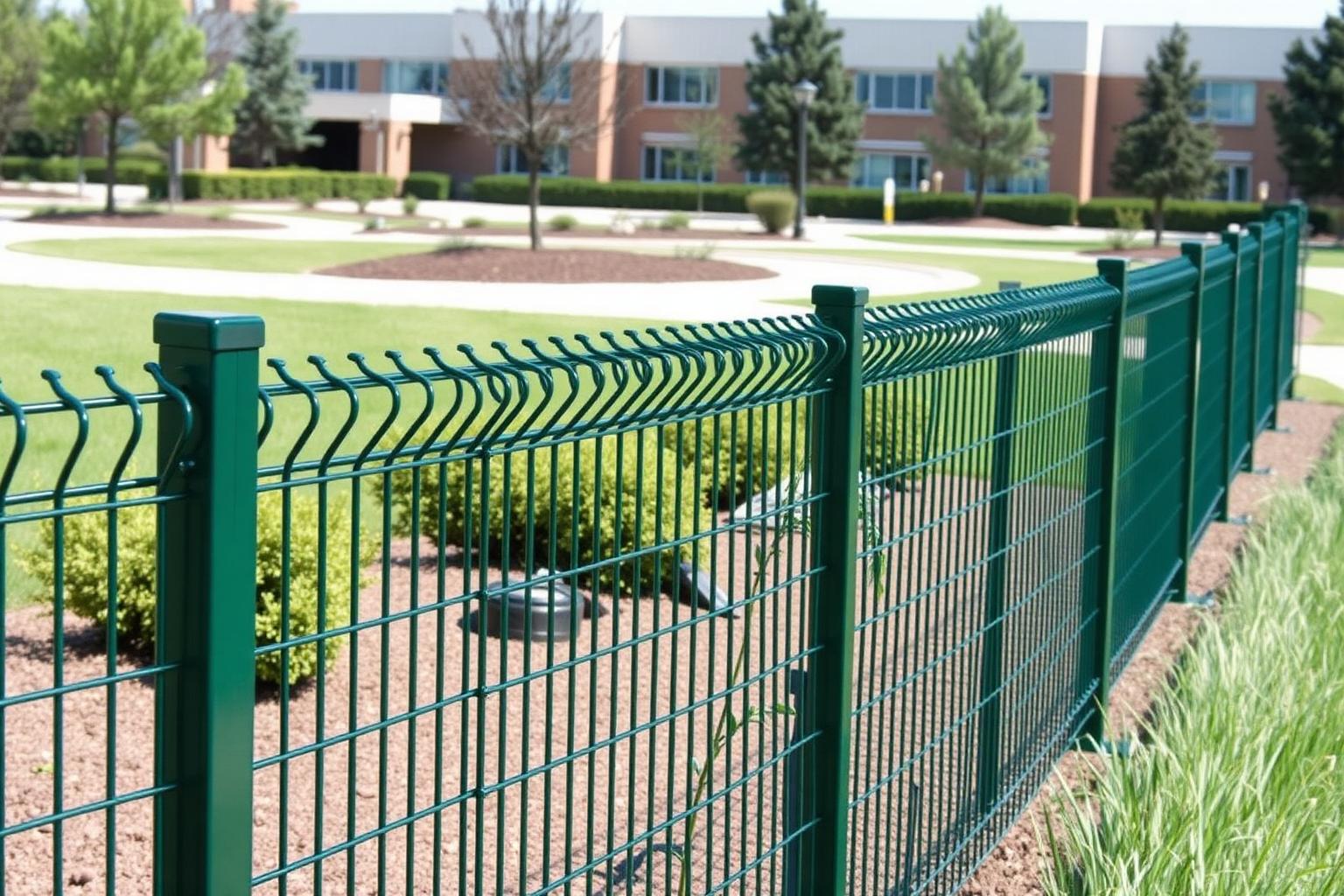

3D welded fence panels are used where the boundary is seen as much as it is used — corporate campuses, IT parks, schools and colleges, hospitals, residential townships and gated colonies, public parks, sports grounds and playgrounds.
The same panel system also suits utility and infrastructure sites — solar plants, substations, water works, metro and highway boundaries — where a rigid, low-maintenance panel fence is preferred over rolled fabric.
Benefits & features of 3D Fence
The horizontal V-bends give the panel its rigidity, so it stays flat over long runs without a top rail and resists bending and climbing far better than plain mesh.
Panels are hot-dip galvanised and then polyester powder coated, so they hold colour and resist corrosion for years with only occasional cleaning. Installation is bolt-on to posts with clamps, sections can be replaced individually, and panel height, mesh and colour can be matched to the architectural brief.
Technical range
3D Fence specifications
- Mesh / opening sizes: 50MM × 200MM
- Wire diameter: 3.0MM, 4.0MM, 5.0MM
- Coating options: Galvanised + PVC
- Height and running length: manufactured to your requirement
- Custom sizes, gauges and finishes made to order
- Supplied with matching posts, fittings and accessories
Share your run length, required height and colour and we will quote the complete 3D panel, post and clamp package.
Products
Filter by specification
Wire diameter
Height
Showing 6 of 6 published products

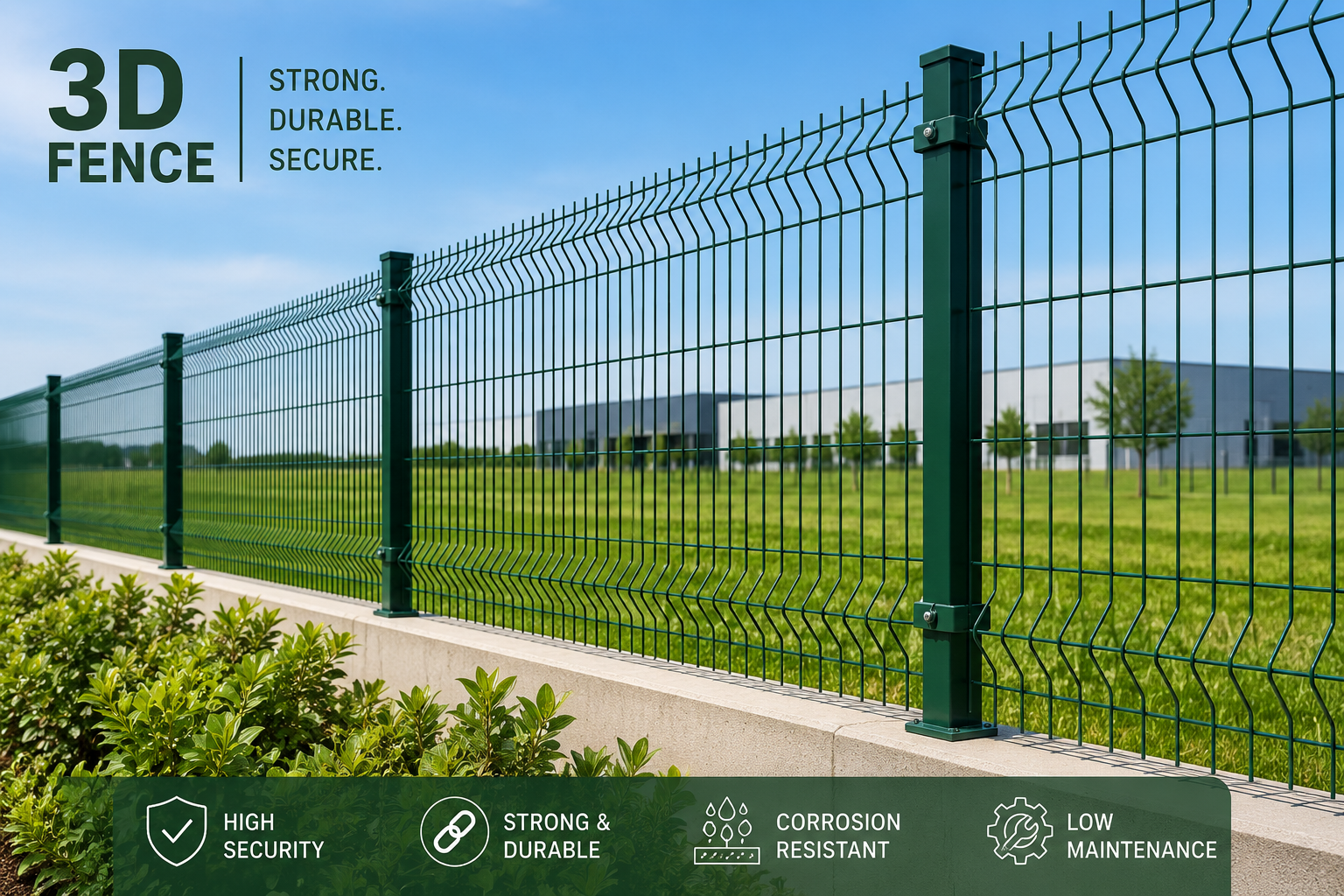

3D Fence Panel – 1000MM Height
V-bend welded 3D fence panel, 1000MM height, PVC coated over galvanised wire.
3D Fence Panel – 1200MM Height
V-bend welded 3D fence panel, 1200MM height, PVC coated over galvanised wire.
3D Fence Panel – 1500MM Height
V-bend welded 3D fence panel, 1500MM height, PVC coated over galvanised wire.
3D Fence Panel – 1800MM Height
V-bend welded 3D fence panel, 1800MM height, PVC coated over galvanised wire.
3D Fence Panel – 2000MM Height
V-bend welded 3D fence panel, 2000MM height, PVC coated over galvanised wire.
3D Fence Panel – 2400MM Height
V-bend welded 3D fence panel, 2400MM height, PVC coated over galvanised wire.
Full size range
3D Fence — size & specification range
Every published size across this category. Download as Excel or CSV.
| 3D Fence Panel – 1000MM Height — 3.0MM Wire | 50MM × 200MM | 3.0MM | 1000MM | Galvanised + PVC |
| 3D Fence Panel – 1000MM Height — 4.0MM Wire | 50MM × 200MM | 4.0MM | 1000MM | Galvanised + PVC |
| 3D Fence Panel – 1000MM Height — 5.0MM Wire | 50MM × 200MM | 5.0MM | 1000MM | Galvanised + PVC |
| 3D Fence Panel – 1200MM Height — 3.0MM Wire | 50MM × 200MM | 3.0MM | 1200MM | Galvanised + PVC |
| 3D Fence Panel – 1200MM Height — 4.0MM Wire | 50MM × 200MM | 4.0MM | 1200MM | Galvanised + PVC |
| 3D Fence Panel – 1200MM Height — 5.0MM Wire | 50MM × 200MM | 5.0MM | 1200MM | Galvanised + PVC |
| 3D Fence Panel – 1500MM Height — 3.0MM Wire | 50MM × 200MM | 3.0MM | 1500MM | Galvanised + PVC |
| 3D Fence Panel – 1500MM Height — 4.0MM Wire | 50MM × 200MM | 4.0MM | 1500MM | Galvanised + PVC |
| 3D Fence Panel – 1500MM Height — 5.0MM Wire | 50MM × 200MM | 5.0MM | 1500MM | Galvanised + PVC |
| 3D Fence Panel – 1800MM Height — 3.0MM Wire | 50MM × 200MM | 3.0MM | 1800MM | Galvanised + PVC |
| 3D Fence Panel – 1800MM Height — 4.0MM Wire | 50MM × 200MM | 4.0MM | 1800MM | Galvanised + PVC |
| 3D Fence Panel – 1800MM Height — 5.0MM Wire | 50MM × 200MM | 5.0MM | 1800MM | Galvanised + PVC |
Technical information
Panel height range: 1000MM to 2400MM. Standard panel width, wire diameter, mesh opening, post section and coating colour are selected per project. Confirm panel width, wire diameter and RAL colour with our team before ordering.
Panel heights, widths, wire diameters and powder coating colours can be manufactured to project specification.
