Angle Poles
Galvanised and painted MS steel angle fencing posts from 25MM x 25MM x 3MM to 65MM x 65MM x 6MM with punched holes.
Steel angle posts are used where the fence must be installed quickly, moved later, or carry higher wind and impact loads than a concrete pole. They are punched for wire lines and can be grouted into concrete or bolted onto plinths and walls. Navkar Fence supplies MS angle posts from 25MM x 25MM x 3MM up to 65MM x 65MM x 6MM.
- Sections from 25x25x3MM to 65x65x6MM
- Punched holes for wire lines
- Grout into concrete or bolt to walls and plinths
- Higher impact and wind resistance than concrete posts
- Can be cut, drilled and modified on site
- Galvanised or painted finish
Where it is used
Angle Poles applications
Galvanised and painted MS angle poles are used as line, corner, strainer and gate posts for chain link, weld mesh, barbed wire and 3D panel fencing across industrial compounds, warehouses, solar plants, substations, schools and residential boundaries.
Cranked angle posts are also used on top of compound walls to carry barbed wire or razor coil.
Benefits & features of Angle Poles
Angle sections are strong in bending, easy to drill, weld and bolt on site, and can be fabricated into any cranked or straight profile to match the drawing.
Galvanised or primer-and-paint finish protects against rust, and steel posts can be grouted into concrete footings or bolted to base plates, which makes them the practical choice where fence lines must be adjusted or relocated later.
Technical range
Angle Poles specifications
- Sizes available: 25MM × 25MM × 3MM, 35MM × 35MM × 3MM, 40MM × 40MM × 5MM, 50MM × 50MM × 5MM, 50MM × 50MM × 6MM, 65MM × 65MM × 6MM
- Coating options: Galvanised / Painted
- Height and running length: manufactured to your requirement
- Custom sizes, gauges and finishes made to order
- Supplied with matching posts, fittings and accessories
Send the angle size, pole height and quantity and we will quote fabricated fence posts to your profile.
Products
Filter by specification
Size
Showing 6 of 6 published products

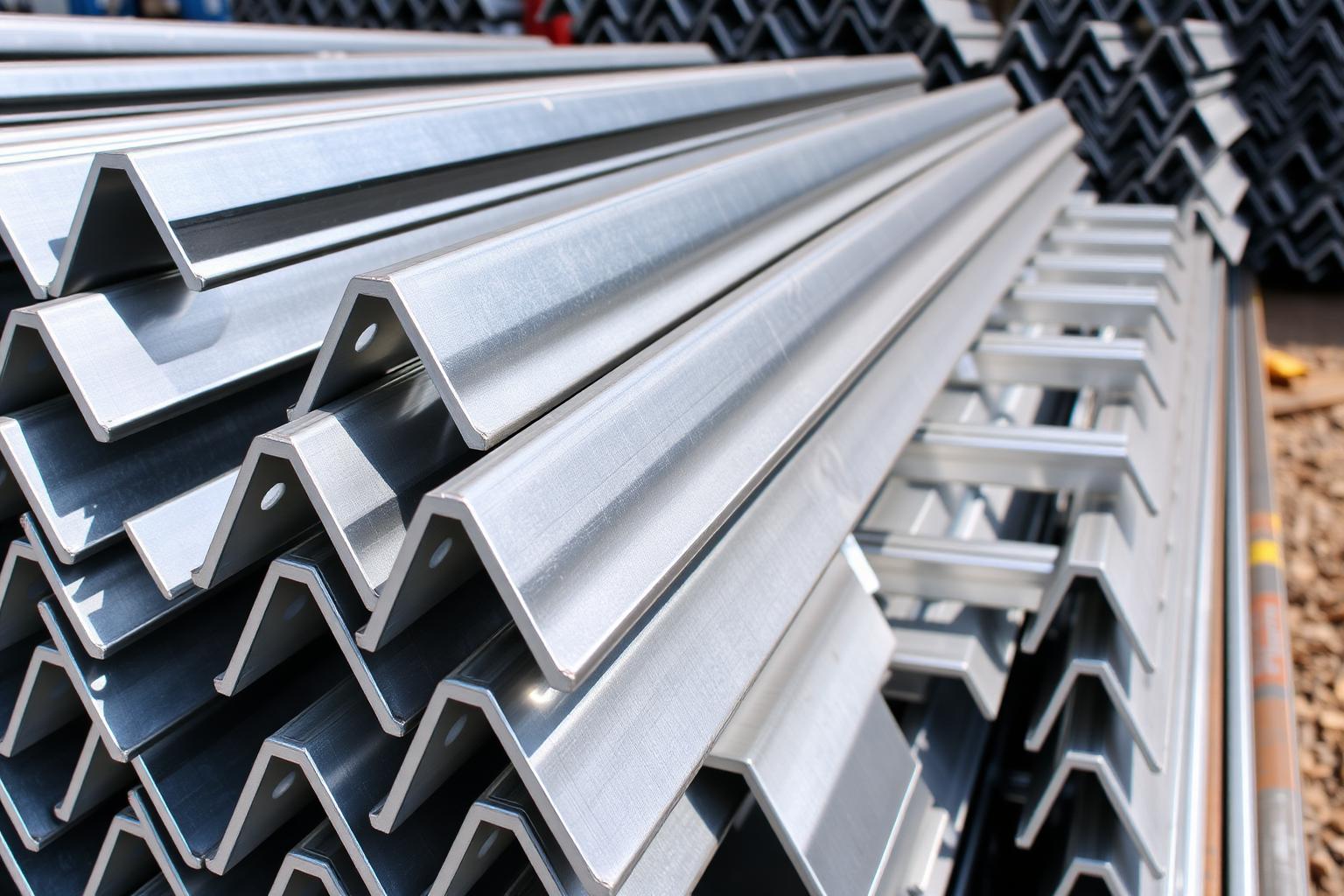

Angle Pole – 25MM × 25MM × 3MM
Galvanised MS angle fencing post, 25 × 25 × 3MM section.
Angle Pole – 35MM × 35MM × 3MM
Galvanised MS angle fencing post, 35 × 35 × 3MM section.
Angle Pole – 40MM × 40MM × 5MM
Galvanised MS angle fencing post, 40 × 40 × 5MM section.
Angle Pole – 50MM × 50MM × 5MM
Galvanised MS angle fencing post, 50 × 50 × 5MM section.
Angle Pole – 50MM × 50MM × 6MM
Galvanised MS angle fencing post, 50 × 50 × 6MM section.
Angle Pole – 65MM × 65MM × 6MM
Galvanised MS angle fencing post, 65 × 65 × 6MM section.
Full size range
Angle Poles — size & specification range
Every published size across this category. Download as Excel or CSV.
| Angle Pole – 25MM × 25MM × 3MM — 25MM × 25MM × 3MM | 25MM × 25MM × 3MM | As Required | Mild Steel Angle | Galvanised / Painted |
| Angle Pole – 35MM × 35MM × 3MM — 35MM × 35MM × 3MM | 35MM × 35MM × 3MM | As Required | Mild Steel Angle | Galvanised / Painted |
| Angle Pole – 40MM × 40MM × 5MM — 40MM × 40MM × 5MM | 40MM × 40MM × 5MM | As Required | Mild Steel Angle | Galvanised / Painted |
| Angle Pole – 50MM × 50MM × 5MM — 50MM × 50MM × 5MM | 50MM × 50MM × 5MM | As Required | Mild Steel Angle | Galvanised / Painted |
| Angle Pole – 50MM × 50MM × 6MM — 50MM × 50MM × 6MM | 50MM × 50MM × 6MM | As Required | Mild Steel Angle | Galvanised / Painted |
| Angle Pole – 65MM × 65MM × 6MM — 65MM × 65MM × 6MM | 65MM × 65MM × 6MM | As Required | Mild Steel Angle | Galvanised / Painted |
Technical information
Section sizes: 25x25x3MM, 35x35x3MM, 40x40x5MM, 50x50x5MM, 50x50x6MM and 65x65x6MM. Length, hole pitch, finish (galvanised or painted) and any bracing are selected per project and should be confirmed before ordering.
Custom lengths, hole pitches, base plates, bends and finishes can be fabricated to order.
